25267
Position sensitive neutron detector

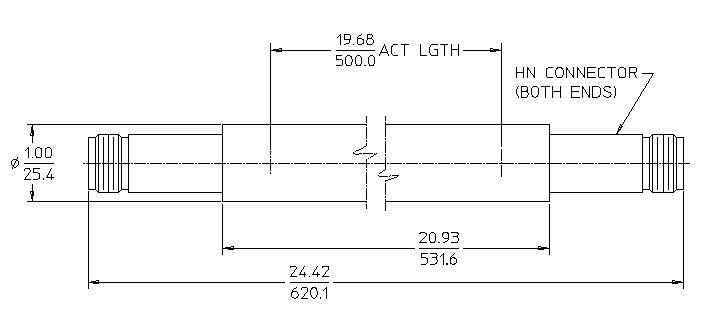

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
24.4/620.3 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| GAS FILLING |
He3 |
| EFFECTIVE LENGTH (INCH/MM) |
19.69/500.1 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.93/23.62 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
+10 to +50 |
| GAS PRESSURE (TORR) at 21°C |
760 |
| EFFECTIVE VOLUME (CM³) |
230 |
Anode Specifications
| MATERIAL |
REDI OHM 800 |
| EFFECTIVE LENGTH (INCH/MM) |
19.69/500.1 |
| DIAMETER (INCH/MM) |
0.00045/0.011 |
| RESISTANCE (OHMS/INCH) |
330.0 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
750 |
| OPERATING VOLTAGE RANGE (VOLTS) |
650 - 900 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| THERMAL NEUTRON SENSITIVITY (CPS/NV) |
28 |
| MAXIMUM RESOLUTION (% FWHM) |
15 |
| POSITION RESOLUTION (MM) |
2 |
