252177
Cylindrical He-3 Neutron Detector

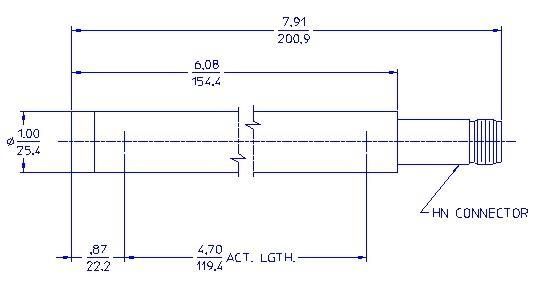

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
7.91/200.9 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
4.7/119.4 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.96/24.4 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
7600 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1450 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1350-1600 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
4 |
| WEIGHT (GRAMS) |
121 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
25 |
