252266
He-3 Neutron Detector
General Specifications

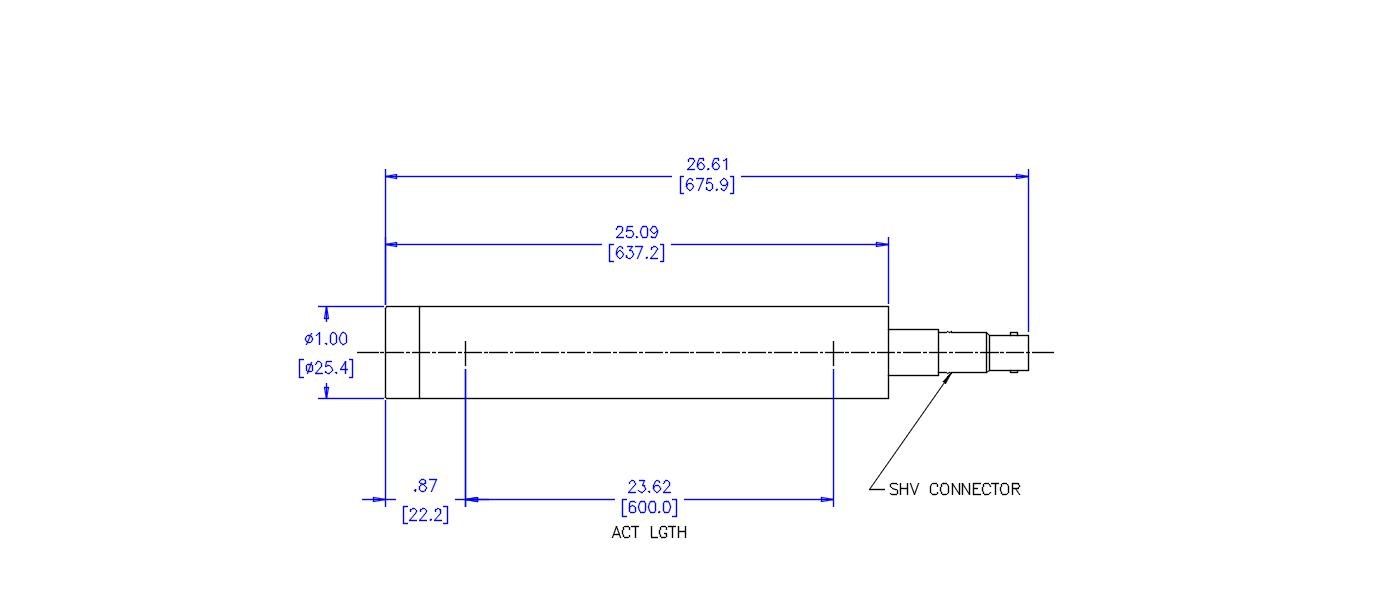

| MAXIMUM LENGTH (INCH/MM) |
26.61/675.9 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
23.62/600.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.96/24.4 |
| CONNECTOR |
SHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
7600 |
| EFFECTIVE VOLUME (CM³) |
276 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1400 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1300-1550 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
N/A |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
N/A |
