25138

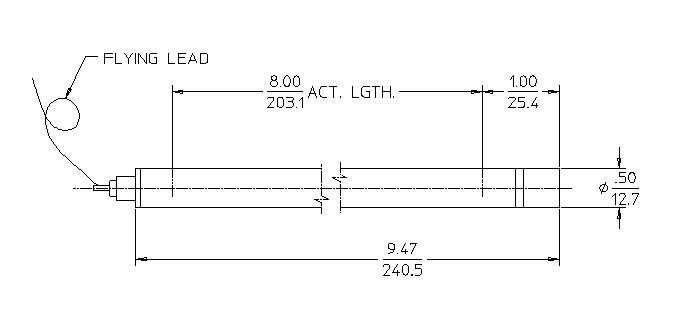

Cylindrical he3 neutron detector
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
10.06/255.52 |
| MAXIMUM DIAMETER (INCH/MM) |
0.5/12.70 |
| EFFECTIVE LENGTH (INCH/MM) |
8.0/203.2 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.4/10.16 |
| CONNECTOR |
Flying Lead |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
8786 |
| EFFECTIVE VOLUME (CM³) |
16.47 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1750 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1650 - 1900 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| MAXIMUM RESOLUTION (% FWHM) |
7 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
16.0 |
