25019
Cylindrical he3 neutron detector

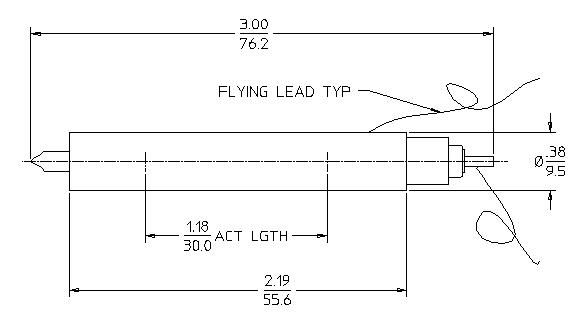

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
3.00/76.2 |
| MAXIMUM DIAMETER (INCH/MM) |
0.38/9.5 |
| EFFECTIVE LENGTH (INCH/MM) |
1.18/30.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.26/6.60 |
| CONNECTOR |
Flying Lead |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
7600 |
| EFFECTIVE VOLUME (CM³) |
1.03 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
850 |
| OPERATING VOLTAGE RANGE (VOLTS) |
750 - 1000 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
4 |
| WEIGHT (GRAMS) |
30 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
0.6 |
