2035

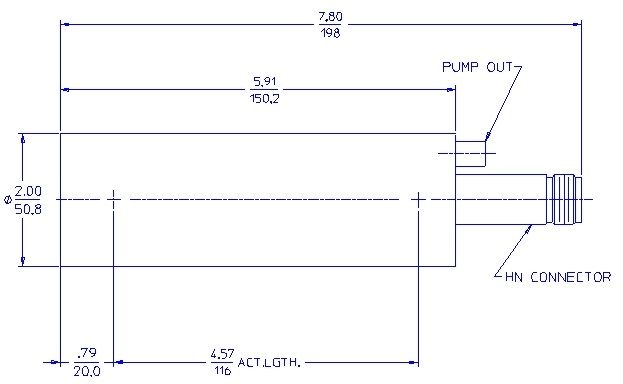

Cylindrical bf3 neutron detector
GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
7.73/196.34 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
4.5/114.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.93/49.02 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
900 |
| EFFECTIVE VOLUME (CM³) |
215.62 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
2500 |
| OPERATING VOLTAGE RANGE (VOLTS) |
2350 - 2700 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
180 |
| MAXIMUM RESOLUTION (% FWHM) |
50 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
21.5 |
