20332

Cylindrical Bf-3 neutron detector

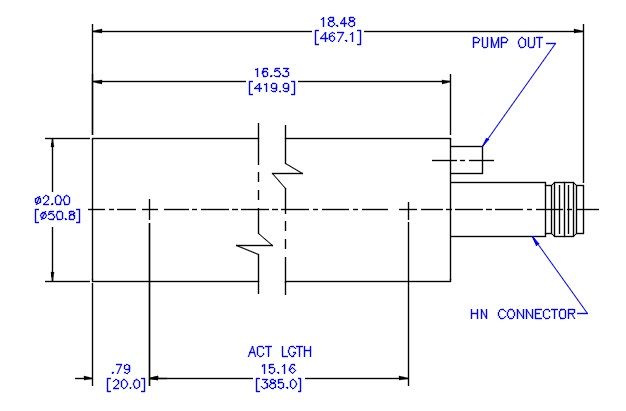

GENERAL SPECIFICATIONS

MAXIMUM LENGTH (INCH/MM) 18.48/467.1
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE LENGTH (INCH/MM) 15.16/385.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 1.93/49.02
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
GAS PRESSURE (TORR) 700
EFFECTIVE VOLUME (CM³) 746

ELECTRICAL SPECIFICATIONS

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1250
OPERATING VOLTAGE RANGE (VOLTS) 1150 - 1450
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 600
MAXIMUM RESOLUTION (% FWHM) 40

THERMAL NEUTRON SENSITIVITY

SENSITIVITY (CPS/NV) N/A
