20294
Cylindrical bf3 neutron detector

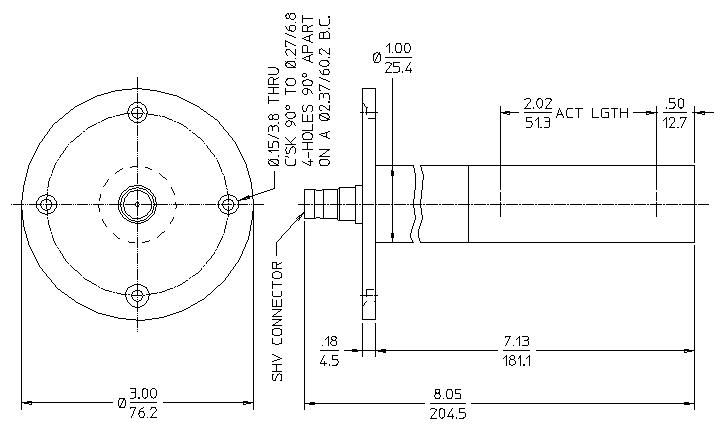

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
8.05/204.5 |
| MAXIMUM DIAMETER (INCH/MM) |
3.0/76.2 |
| EFFECTIVE LENGTH (INCH/MM) |
2.02/51.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.96/24.38 |
| CONNECTOR |
SHV |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
600 |
| EFFECTIVE VOLUME (CM³) |
23.95 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1300 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1200 - 1450 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
2 |
| TUBE CAPACITANCE (PF) |
7 |
| MAXIMUM RESOLUTION (% FWHM) |
12 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
1.5 |
