20225
Cylindrical bf3 neutron detector
GENERAL SPECIFICATIONS

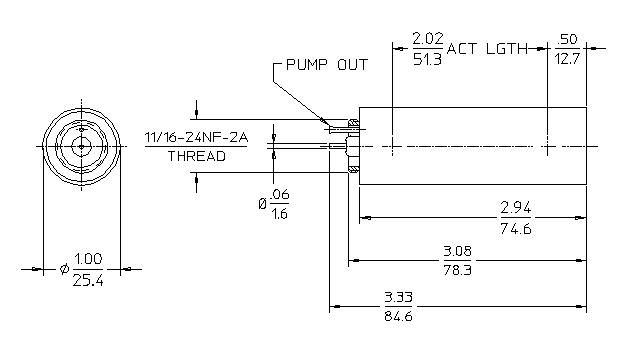

| MAXIMUM LENGTH (INCH/MM) |
3.33/84.6 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| EFFECTIVE LENGTH (INCH/MM) |
2.02/51.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.96/24.4 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
200 |
| EFFECTIVE VOLUME (CM³) |
23.95 |
| CONNECTOR THREAD |
11/16 - 24NF - 2A |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
800 |
| OPERATING VOLTAGE RANGE (VOLTS) |
700 - 950 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
7 |
| WEIGHT (GRAMS) |
38 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
0.5 |
