52063

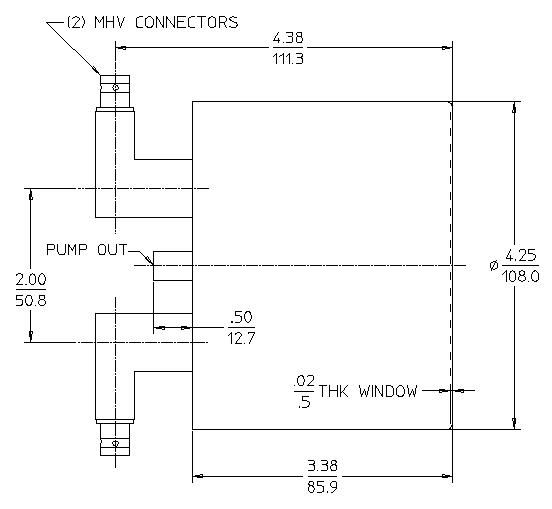

End window gamma ionization chamber
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
4.62/117.35 |
| MAXIMUM DIAMETER (INCH/MM) |
4.25/107.95 |
| EFFECTIVE LENGTH (INCH/MM) |
3.38/85.85 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Krypton |
| FILL PRESSURE (TORR) |
760 |
| ANODE CONNECTOR |
MHV |
| CATHODE CONNECTOR |
N/A |
| GUARD CONNECTOR |
MHV |
| STORAGE TEMPERATURE RANGE (°C) |
-20 to +75 |
| MINIMUM SHELF LIFE (YEARS) |
2 |
| OUTER CASING MATERIAL |
Aluminum |
WINDOW SPECIFICATIONS
| MATERIAL |
Aluminum |
| THICKNESS (INCH/MM) |
0.02/0.5 |
| EFFECTIVE DIAMETER (INCH/MM) |
4.0/101.6 |
OPERATING CHARACTERISTICS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
1000 |
| OPERATING TEMPERATURE RANGE °C |
25 to 85 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
1.6E-10 |
| RESISTANCE - SIGNAL ELECTRODE TO CATHODE (OHMS) |
>1.0E13 |
| RESISTANCE - HV ELECTRODE TO CATHODE (OHMS) |
>1.0E9 |
