50351
High pressure gamma ionization chamber

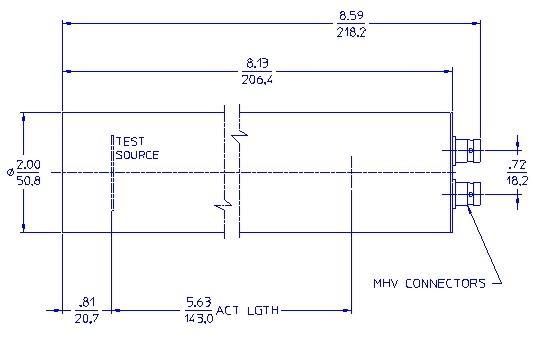

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
8.59/218.2 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
5.63/143.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Nitrogen |
| FILL PRESSURE (TORR) |
7600 |
| EFFECTIVE VOLUME (CM³) |
146 |
| OUTER CASING MATERIAL |
Stainless Steel |
| ANODE CONNECTOR |
MHV |
| CATHODE CONNECTOR |
MHV |
| INTERNAL TEST SOURCE (AM-241) |
150 nci |
Operating Characteristics
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
2000 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
5.0E-10 |
| RESISTANCE - HV ELECTRODE TO SHELL (OHMS) |
>1.0E9 |
| RESISTANCE - SIGNAL ELECTRODE TO SHELL (OHMS) |
>1.0E13 |
