74320
High temperature gamma detector

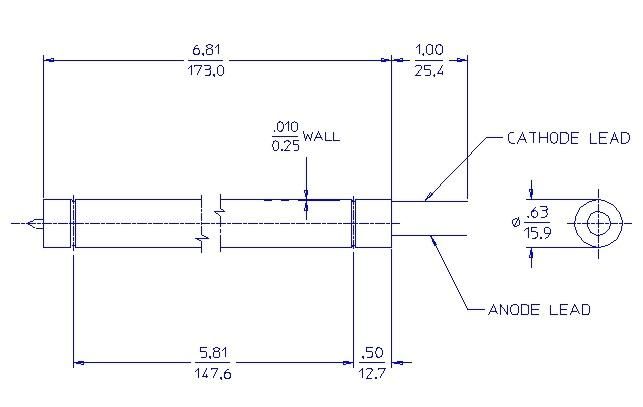

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
7.06/179.3 |
| MAXIMUM DIAMETER (INCH/MM) |
0.63/16.0 |
| GAS FILLING |
Ne +Halogen |
| EFFECTIVE LENGTH (INCH/MM) |
5.81/147.6 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
446 Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.61/15.5 |
| CONNECTOR |
Flying Lead |
| OPERATING TEMPERATURE RANGE °C |
-40 to +150 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
700 |
| RECOMMENDED ANODE RESISTOR (MEG OHM) |
3.3 |
| OPERATING VOLTAGE RANGE (VOLTS) |
650 - 800 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
15 |
| MINIMUM DEAD TIME (MICRO SEC) |
75 |
| pa_gamma-sensitivity-co60 |
|
| TUBE CAPACITANCE (PF) |
3 |
| WEIGHT (GRAMS) |
24 |
| MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) |
50 |
| MAXIMUM STARTING VOLTAGE (VOLTS) |
600 |
