71616
Energy independent gm detector

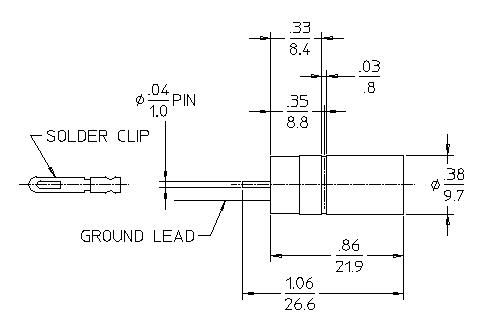

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
1.06/26.6 |
| MAXIMUM DIAMETER (INCH/MM) |
0.38/9.7 |
| GAS FILLING |
Ne +Halogen |
| EFFECTIVE LENGTH (INCH/MM) |
0.25/6.35 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
446 Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.2/5.1 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-10 to +75 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| RECOMMENDED ANODE RESISTOR (MEG OHM) |
3.3 |
| OPERATING VOLTAGE RANGE (VOLTS) |
450 - 600 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
30 |
| MINIMUM DEAD TIME (MICRO SEC) |
20 |
| GAMMA SENSITIVITY Cs-137 (CPS/mR/HR) |
0.26 |
| TUBE CAPACITANCE (PF) |
3 |
| WEIGHT (GRAMS) |
8 |
| MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) |
2 |
| MAXIMUM STARTING VOLTAGE (VOLTS) |
380 |
| MINIMUM ANODE RESISTOR (MEG OHM) |
2.2 |
Filter Specifications
| MATERIAL |
Sn |
| THICKNESS (INCH/MM) |
0.08/2.0 |
Wall Specifications
| THICKNESS (INCH/MM) |
0.005/0.13 |
| AREAL DENSITY (MG/CM²) |
90 |
