71215
Energy compensated gm detector
General Specifications

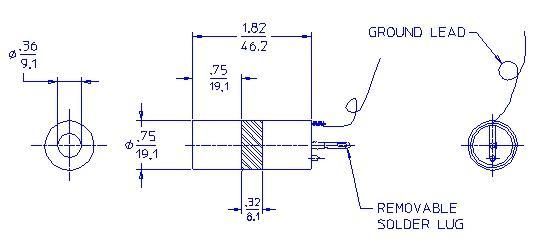

| MAXIMUM LENGTH (INCH/MM) |
1.82/46.2 |
| MAXIMUM DIAMETER (INCH/MM) |
0.75/19.1 |
| GAS FILLING |
Ne +Halogen |
| EFFECTIVE LENGTH (INCH/MM) |
1.5/38.1 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
446 Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.56/14.2 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-10 to +75 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| RECOMMENDED ANODE RESISTOR (MEG OHM) |
4.7 |
| OPERATING VOLTAGE RANGE (VOLTS) |
450 - 650 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
6 |
| MINIMUM DEAD TIME (MICRO SEC) |
90 |
| GAMMA SENSITIVITY Cs-137 (CPS/mR/HR) |
18 |
| TUBE CAPACITANCE (PF) |
3 |
| MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) |
10 |
| MAXIMUM STARTING VOLTAGE (VOLTS) |
350 |
Filter Specifications
| MATERIAL |
Sn |
| THICKNESS (INCH/MM) |
0.08/2.0 |
Wall Specifications
| THICKNESS (INCH/MM) |
0.012/0.30 |
| AREAL DENSITY (MG/CM²) |
216 |
