4562
Beryllium side window proportional counter

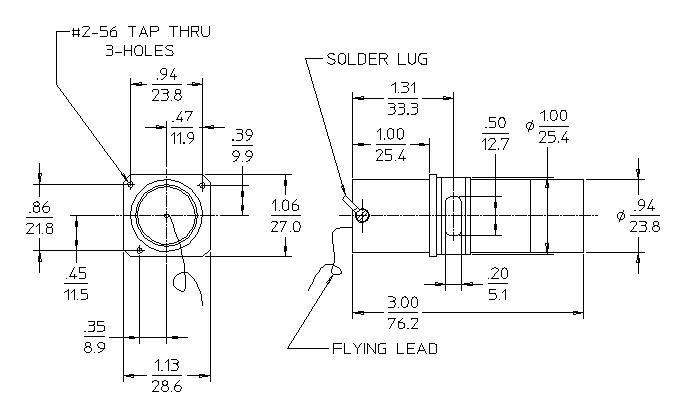

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
3.0/76.2 |
| MAXIMUM DIAMETER (INCH/MM) |
1.13/28.7 |
| GAS FILLING |
Xenon |
| EFFECTIVE LENGTH (INCH/MM) |
1.98/50.3 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.79/20.1 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
430 |
| PATH LENGTH (INCH/MM) |
0.79/20.1 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.002/0.05 |
| AREAL DENSITY (MG/CM²) |
9.2 |
| DIMENSIONS (INCH/MM) |
0.20 x 0.50/5.1 X 12.7 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1800 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1700 - 1950 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
18 |
