456132

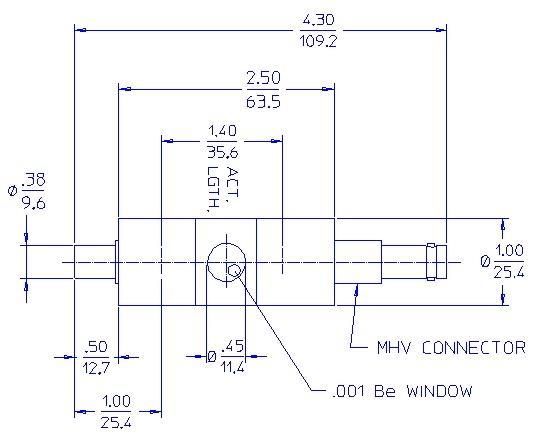

Beryllium side window proportional counter
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
4.30/109.2 |
| MAXIMUM DIAMETER (INCH/MM) |
1.0/25.4 |
| GAS FILLING |
Xenon |
| EFFECTIVE LENGTH (INCH/MM) |
1.40/35.6 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.87/22.1 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
800 |
| PATH LENGTH (INCH/MM) |
0.87/22.1 |
Window Specifications
| MATERIAL |
Beryllium |
| THICKNESS (INCH/MM) |
0.001 / 0.025 |
| AREAL DENSITY (MG/CM²) |
4.6 |
| DIAMETER (INCH/MM) |
0.45/11.4 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1900 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1800 - 2050 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
20 |
