4312
Steel window beta – gamma proportional counter

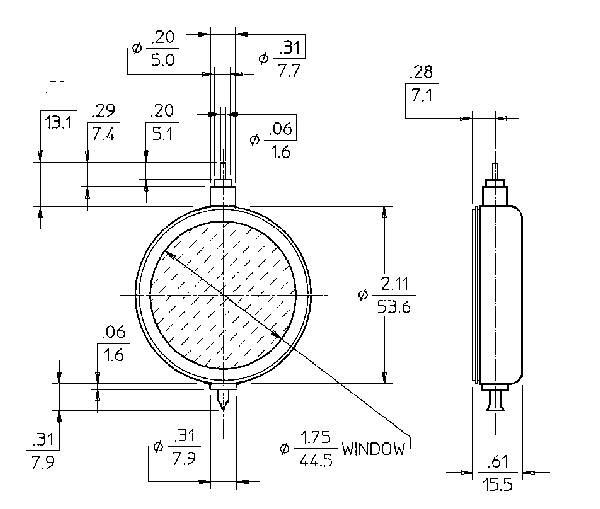

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
2.94/74.7 |
| MAXIMUM DIAMETER (INCH/MM) |
2.11/53.6 |
| GAS FILLING |
Xenon |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.75/44.45 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
| GAS PRESSURE (TORR) at 21°C |
1520 |
| PATH LENGTH (INCH/MM) |
0.50/12.7 |
Window Specifications
| MATERIAL |
Stainless Steel |
| THICKNESS (INCH/MM) |
0.001 / 0.025 |
| AREAL DENSITY (MG/CM²) |
20 |
| DIAMETER (INCH/MM) |
1.75/44.45 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1650 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1200 - 1800 |
| GAMMA SENSITIVITY Cs-137 (CPS/mR/HR) |
150 |
| CAPACITANCE (PF) |
3 |
