4012

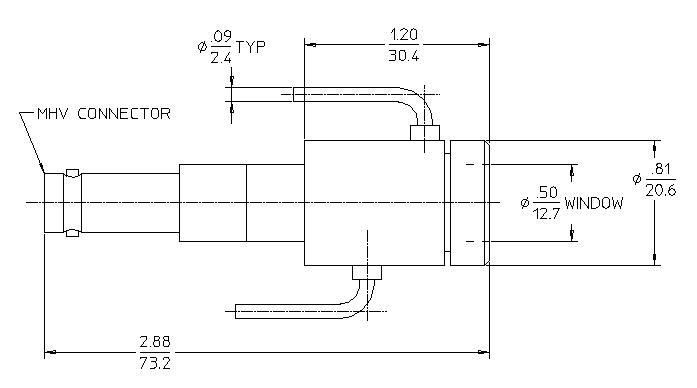

End window flow proportional counter
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
2.88/73.15 |
| MAXIMUM DIAMETER (INCH/MM) |
1.63/41.4 |
| GAS FILLING |
P10 |
| EFFECTIVE LENGTH (INCH/MM) |
0.5/12.7 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
.05/12.7 |
| CONNECTOR |
MHV |
| OPERATING TEMPERATURE RANGE °C |
0 to +50 |
Window Specifications
| MATERIAL |
Mylar |
| THICKNESS (INCH/MM) |
0.0005/0.013 |
| AREAL DENSITY (MG/CM²) |
0.8 |
| DIAMETER (INCH/MM) |
.05/12.7 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1600 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1500 - 1750 |
| CAPACITANCE (PF) |
3 |
| TYPICAL RESOLUTION (FWHM FE55) |
25 |
