253149
Cylindrical he3 neutron detector

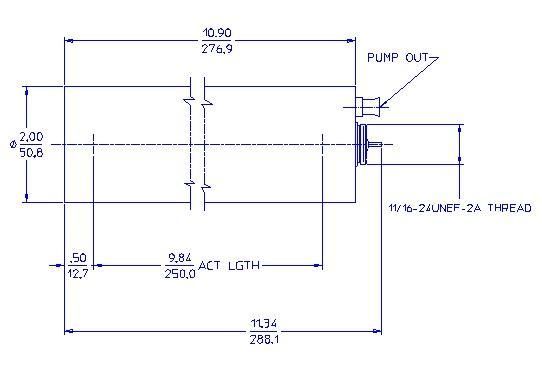

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
11.34/288.1 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
9.84/250.0 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.96/49.78 |
| CONNECTOR |
Pin |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
3040 |
| EFFECTIVE VOLUME (CM³) |
465 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1150 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1050 - 1300 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
3 |
| TUBE CAPACITANCE (PF) |
8.5 |
| WEIGHT (GRAMS) |
221 |
| MAXIMUM RESOLUTION (% FWHM) |
10 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
103 |
