25288

Cylindrical high temperature He-3 Detector

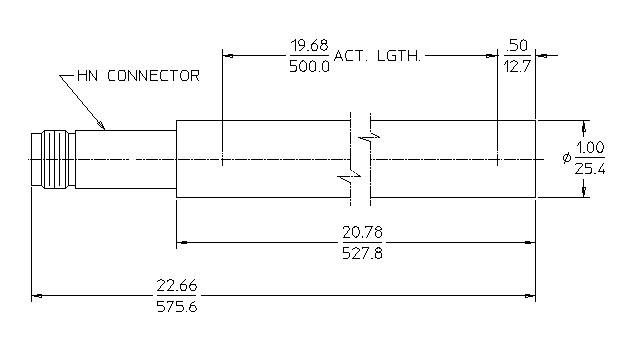

General Specifications

MAXIMUM LENGTH (INCH/MM) 22.66/575.6
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
EFFECTIVE LENGTH (INCH/MM) 19.68/500.0
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 0.96/24.38
CONNECTOR HN

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1100
OPERATING VOLTAGE RANGE (VOLTS) 1000 - 1250
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 1
TUBE CAPACITANCE (PF) 8
WEIGHT (GRAMS) 275
MAXIMUM RESOLUTION (% FWHM) 10

Thermal Neutron Sensitivity

SENSITIVITY (CPS/NV) 70
