2517

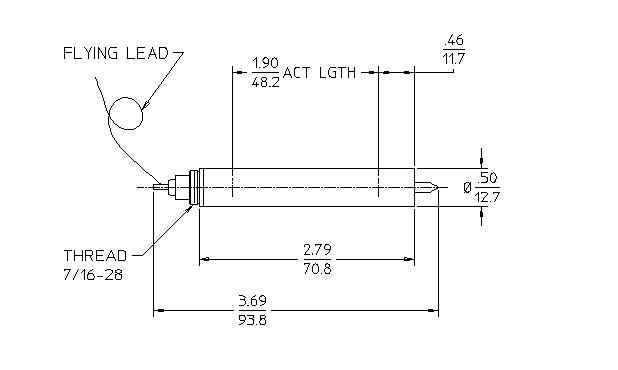

Cylindrical he3 neutron detector
General Specifications
| MAXIMUM LENGTH (INCH/MM) |
3.7/93.98 |
| MAXIMUM DIAMETER (INCH/MM) |
0.5/12.7 |
| EFFECTIVE LENGTH (INCH/MM) |
1.9/48.26 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.4/10.16 |
| CONNECTOR |
Flying Lead |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
4560 |
| EFFECTIVE VOLUME (CM³) |
3.91 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1200 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1100 - 1350 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
4 |
| WEIGHT (GRAMS) |
85 |
| MAXIMUM RESOLUTION (% FWHM) |
8 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
1.9 |
