25124
Cylindrical he3 time of flight neutron detector

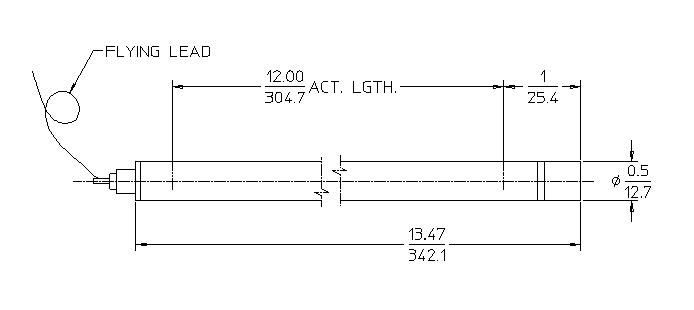

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
14.02/356.11 |
| MAXIMUM DIAMETER (INCH/MM) |
0.5/12.7 |
| EFFECTIVE LENGTH (INCH/MM) |
12.0/304.8 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| EFFECTIVE DIAMETER (INCH/MM) |
0.4/10.16 |
| CONNECTOR |
Flying Lead |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
8786 |
| EFFECTIVE VOLUME (CM³) |
24.7 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
1750 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1650 - 1900 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
4 |
| WEIGHT (GRAMS) |
50 |
| MAXIMUM RESOLUTION (% FWHM) |
6 |
Thermal Neutron Sensitivity
| SENSITIVITY (CPS/NV) |
15.0 |
