2033
Cylindrical bf3 neutron detector

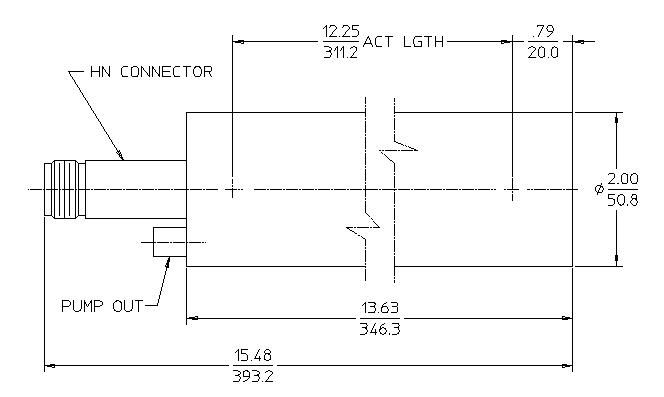

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) |
15.48/393.19 |
| MAXIMUM DIAMETER (INCH/MM) |
2.0/50.8 |
| EFFECTIVE LENGTH (INCH/MM) |
12.25/311.15 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
1.93/49.02 |
| CONNECTOR |
HN |
| OPERATING TEMPERATURE RANGE °C |
-50 to +100 |
| GAS PRESSURE (TORR) at 21°C |
700 |
| EFFECTIVE VOLUME (CM³) |
603 |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
2150 |
| OPERATING VOLTAGE RANGE (VOLTS) |
1900 - 2400 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
1 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
600 |
| MAXIMUM RESOLUTION (% FWHM) |
40 |
THERMAL NEUTRON SENSITIVITY
| SENSITIVITY (CPS/NV) |
40 |
