52075

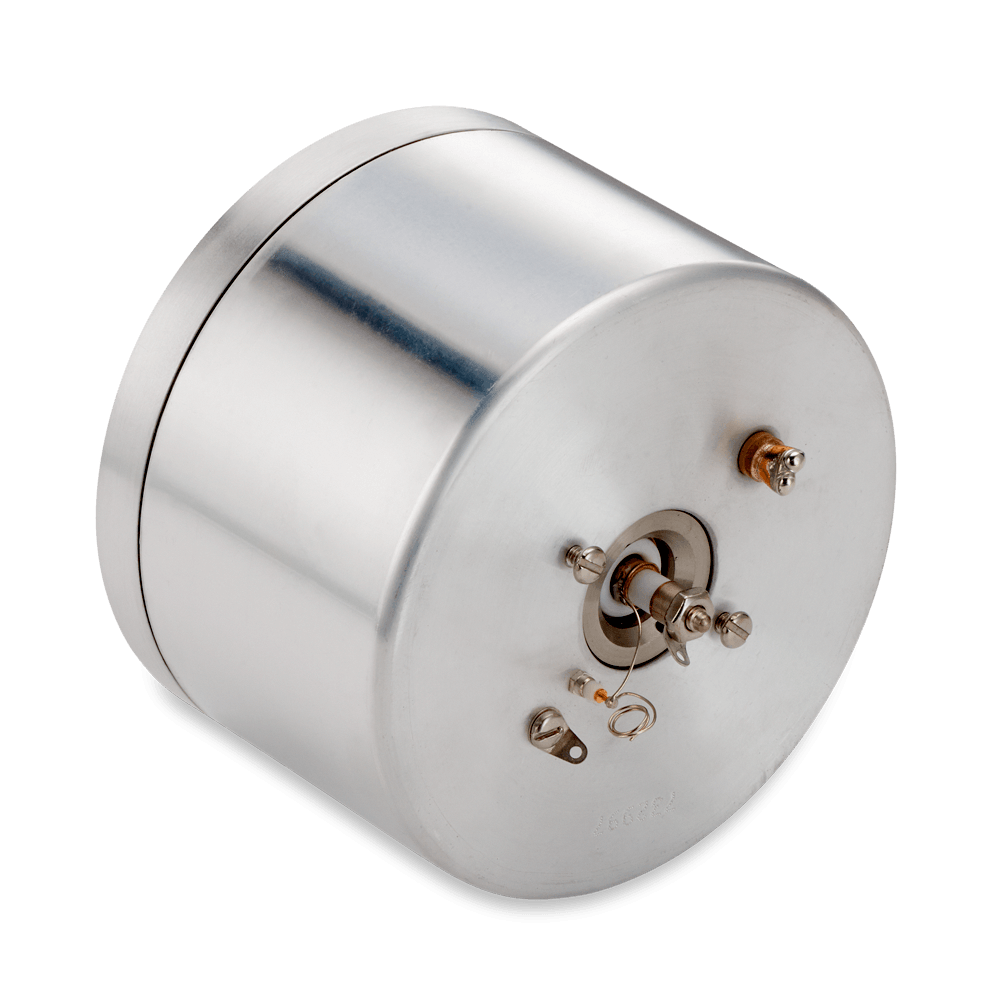

End window beta-gamma ionization chamber
GENERAL SPECIFICATIONS

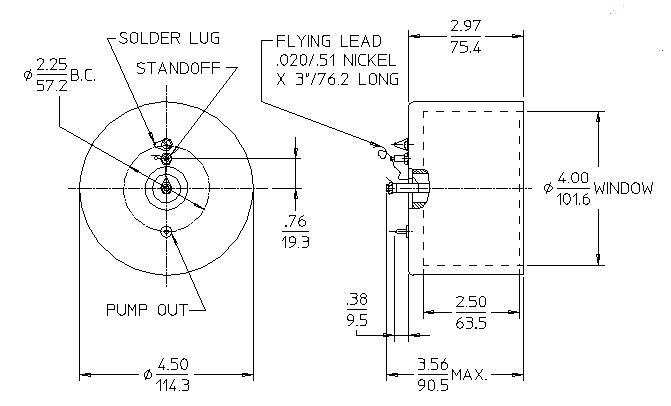

| MAXIMUM LENGTH (INCH/MM) |
3.56/90.5 |
| MAXIMUM DIAMETER (INCH/MM) |
4.5/114.3 |
| EFFECTIVE LENGTH (INCH/MM) |
2.5/63.5 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
Aluminum |
| FILL GAS |
Krypton |
| FILL PRESSURE (TORR) |
1637 |
| ANODE CONNECTOR |
Solder Lug |
| CATHODE CONNECTOR |
Solder Lug |
| GUARD CONNECTOR |
Flying Lead |
| STORAGE TEMPERATURE RANGE (°C) |
-40 to 100 |
| MINIMUM SHELF LIFE (YEARS) |
2 |
WINDOW SPECIFICATIONS
| MATERIAL |
Stainless Steel |
| THICKNESS (INCH/MM) |
.001/.025 |
| EFFECTIVE DIAMETER (INCH/MM) |
4.0/101.6 |
OPERATING CHARACTERISTICS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |
| OPERATING TEMPERATURE RANGE °C |
25 to 85 |
| MAXIMUM OPERATING VOLTAGE (VOLTS) |
800 |
| GAMMA SENSITIVITY (A/R/HR - Cs-137) |
2.5E-10 |
| GAMMA SENSITIVITY (CS137) (A/R/HR) |
3.25E-10 |
| RESISTANCE - SIGNAL ELECTRODE TO GUARD (OHMS) |
>1.0E13 |
| RESISTANCE - CATHODE TO GUARD (OHMS) |
>1.0E13 |
