7807
Energy compensated gm detector

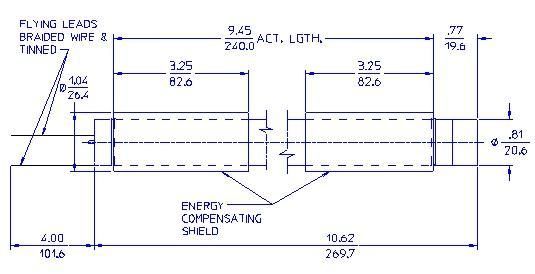

General Specifications
| MAXIMUM LENGTH (INCH/MM) |
10.62/269.7 |
| MAXIMUM DIAMETER (INCH/MM) |
1.04/26.4 |
| GAS FILLING |
Ne +Halogen |
| EFFECTIVE LENGTH (INCH/MM) |
9.45/240 |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
446 Stainless Steel |
| EFFECTIVE DIAMETER (INCH/MM) |
0.786/20.0 |
| CONNECTOR |
Flying Lead |
| OPERATING TEMPERATURE RANGE °C |
-40 to +75 |
Electrical Specifications
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
500 |

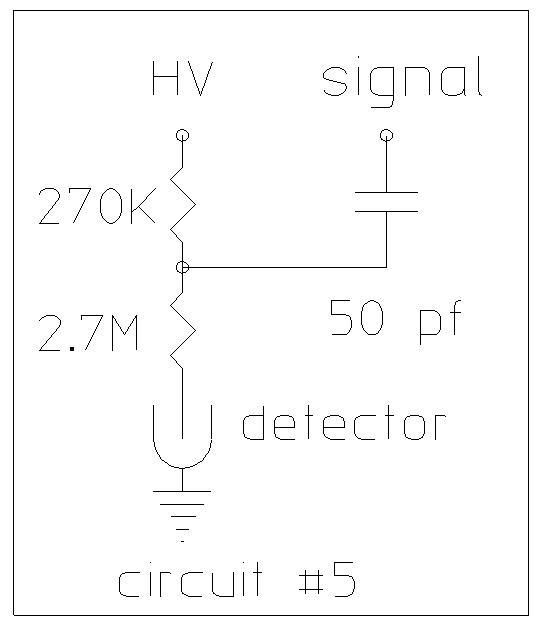

| RECOMMENDED ANODE RESISTOR (MEG OHM) |
3.3 |
| OPERATING VOLTAGE RANGE (VOLTS) |
450 - 650 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
15 |
| MINIMUM DEAD TIME (MICRO SEC) |
210 |
| GAMMA SENSITIVITY Cs-137 (CPS/mR/HR) |
160 |
| TUBE CAPACITANCE (PF) |
8 |
| WEIGHT (GRAMS) |
350 |
| MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) |
90 |
| MAXIMUM STARTING VOLTAGE (VOLTS) |
400 |
| MINIMUM ANODE RESISTOR (MEG OHM) |
2.7 |
Filter Specifications
| MATERIAL |
Sn |
| THICKNESS (INCH/MM) |
0.093/2.36 |
Wall Specifications
| THICKNESS (INCH/MM) |
0.012/.305 |
| AREAL DENSITY (MG/CM²) |
252 |
