718
End window alpha-beta-gamma detector

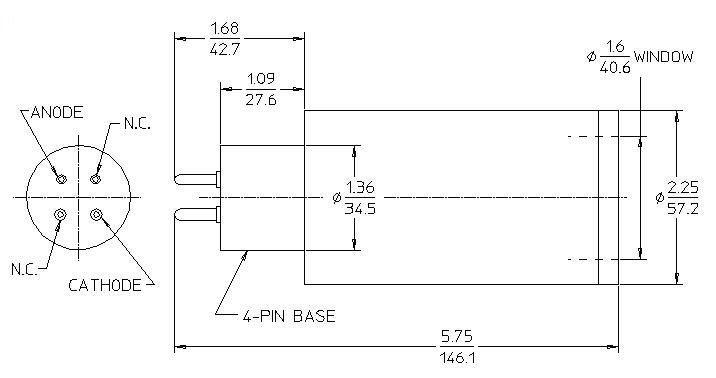

GENERAL SPECIFICATIONS
| GAS FILLING |
Ne +Halogen |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) |
446 Stainless Steel |
| MAXIMUM LENGTH (INCH/MM) |
5.75/146.1 |
| MAXIMUM DIAMETER (INCH/MM) |
2.25/57.1 |
| EFFECTIVE DIAMETER (INCH/MM) |
1.6/40.6 |
| CONNECTOR |
Jedec A4-9 |
| OPERATING TEMPERATURE RANGE °C |
-55 to +75 |
| EFFECTIVE DEPTH (INCH/MM) |
4.06/103.12 |
WINDOW SPECIFICATIONS
| AREAL DENSITY (MG/CM²) |
5.0 - 6.0 |
| EFFECTIVE DIAMETER (INCH/MM) |
1.6/40.64 |
| MATERIAL |
Mica |
ELECTRICAL SPECIFICATIONS
| RECOMMENDED ANODE RESISTOR (MEG OHM) |
1 |
| MAXIMUM STARTING VOLTAGE (VOLTS) |
750 |
| RECOMMENDED OPERATING VOLTAGE (VOLTS) |
900 |
| OPERATING VOLTAGE RANGE (VOLTS) |
800-1050 |
| MAXIMUM PLATEAU SLOPE (%/100 VOLTS) |
10 |
| MINIMUM DEAD TIME (MICRO SEC) |
300 |

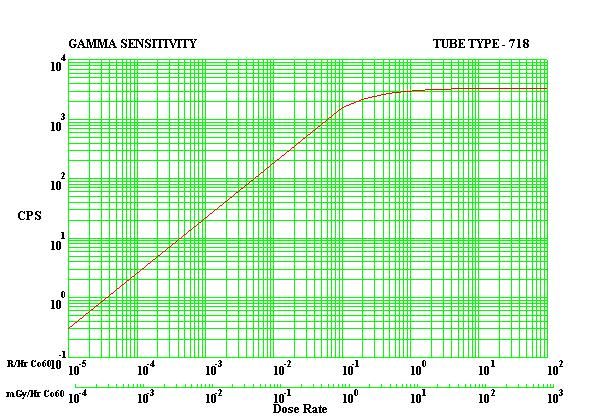

| GAMMA SENSITIVITY Cs-137 (CPS/mR/HR) |
30 |
| TUBE CAPACITANCE (PF) |
3 |
| WEIGHT (GRAMS) |
400 |
| MAXIMUM BACKGROUND SHIELDED 50MM PB + 3MM AL (CPM) |
75 |
