49772

General Specifications

MAXIMUM LENGTH (INCH/MM) 13.87/352.4
GAS FILLING Argon
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
CONNECTOR D-SUB
OPERATING TEMPERATURE RANGE °C 0 to +50
MAXIMUM WIDTH (INCH/MM) 5.69/144.4
GAS PRESSURE (TORR) 800
EFFECTIVE WIDTH (INCH/MM) 4.50/114.3
PATH LENGTH (INCH/MM) 1.25/31.8

Window Specifications

MATERIAL Titanium
THICKNESS (INCH/MM) 0.0004/0.010

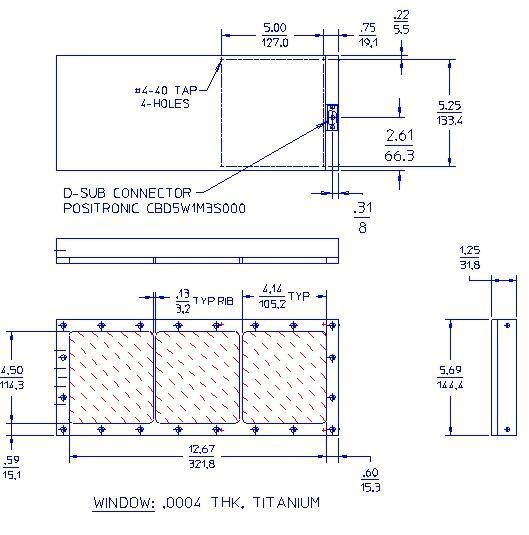

DIMENSIONS (INCH/MM) See Drawing

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1200
OPERATING VOLTAGE RANGE (VOLTS) 1100 - 1400
TYPICAL RESOLUTION (FWHM FE55) <20
