49733

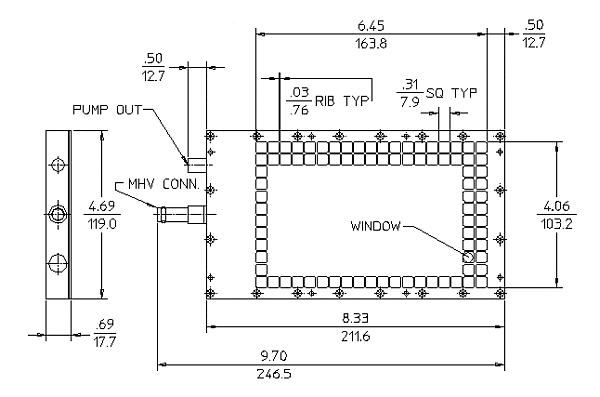

General Specifications

MAXIMUM LENGTH (INCH/MM) 9.64/244.9
GAS FILLING Xenon
EFFECTIVE LENGTH (INCH/MM) 6.45/163.8
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C 0 to +50
MAXIMUM WIDTH (INCH/MM) 4.69/119.1
GAS PRESSURE (TORR) 800
EFFECTIVE WIDTH (INCH/MM) 4.08/103.7
PATH LENGTH (INCH/MM) 0.50/12.7

Window Specifications

MATERIAL Titanium
THICKNESS (INCH/MM) 0.00047/0.012
AREAL DENSITY (MG/CM²) 5.0
EFFECTIVE AREA (CM²) 140

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1450
OPERATING VOLTAGE RANGE (VOLTS) 1350 - 1600
GAMMA SENSITIVITY CO60 (CPS/MR/HR) 600
MINIMUM COUNTING LIFE (COUNTS) 1.0E12
PLATEAU SLOPE (%/100 VOLTS) 2
