49567

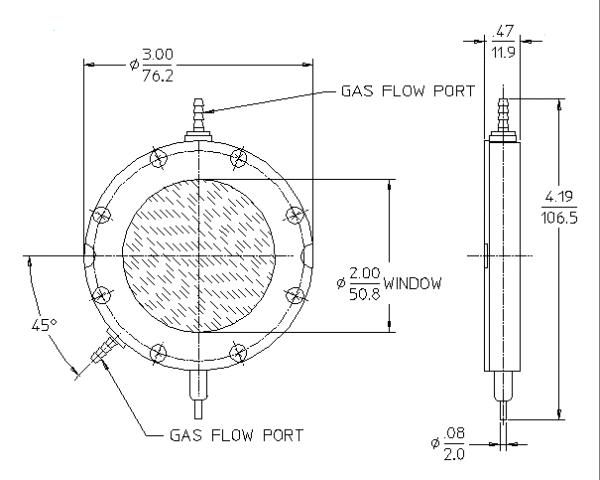

General Specifications

MAXIMUM LENGTH (INCH/MM) 4.19/106.5
MAXIMUM DIAMETER (INCH/MM) 3.0/76.2
GAS FILLING P10 (Flow)
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
EFFECTIVE DIAMETER (INCH/MM) 2.0/50.8
CONNECTOR Pin
OPERATING TEMPERATURE RANGE °C 0 to +50
PATH LENGTH (INCH/MM) 0.354/8.99

Window Specifications

MATERIAL Aluminized Mylar
AREAL DENSITY (MG/CM²) 0.2
DIAMETER (INCH/MM) 2.0/50.8

Electrical Specifications

CAPACITANCE (PF) 3
BACKGROUND (ANTICOINCIDENCE +4 INCHES PB) (CPM) 1.0
OPERATING VOLTAGE RANGE - BETA/GAMMA (VOLTS) 1300 - 1600
OPERATING VOLTAGE RANGE - ALPHA (VOLTS) 900 - 1150
RECOMMENDED OPERATING VOLTAGE - ALPHA (VOLTS) 1000
RECOMMENDED OPERATING VOLTAGE - BETA/GAMMA (VOLTS) 1450
