49540

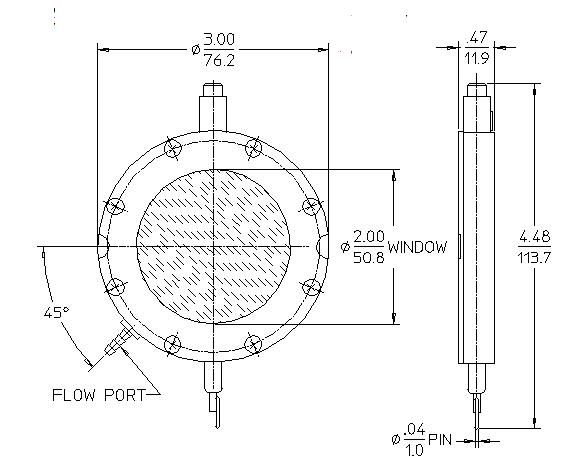

General Specifications

MAXIMUM LENGTH (INCH/MM) 4.48/113.8
MAXIMUM DIAMETER (INCH/MM) 3.0/76.2
GAS FILLING P10 (Flow)
EFFECTIVE LENGTH (INCH/MM) 2.0/50.8
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
EFFECTIVE DIAMETER (INCH/MM) 2.0/50.8
CONNECTOR Pin
OPERATING TEMPERATURE RANGE °C 0 to +50
PATH LENGTH (INCH/MM) 0.35/9.0

Window Specifications

MATERIAL Aluminized Mylar
AREAL DENSITY (MG/CM²) 0.8
DIAMETER (INCH/MM) 2.0/50.8

Electrical Specifications

CAPACITANCE (PF) 3
BACKGROUND (ANTICOINCIDENCE +4 INCHES PB) (CPM) 1.5
OPERATING VOLTAGE RANGE - BETA/GAMMA (VOLTS) 1350 - 1600
OPERATING VOLTAGE RANGE - ALPHA (VOLTS) 900 - 1150
RECOMMENDED OPERATING VOLTAGE - ALPHA (VOLTS) 1000
RECOMMENDED OPERATING VOLTAGE - BETA/GAMMA (VOLTS) 1450
