4910

General Specifications

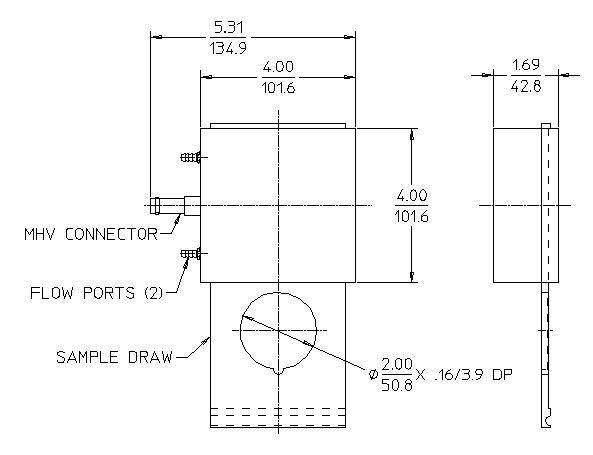

MAXIMUM LENGTH (INCH/MM) 5.31/134.9
GAS FILLING P10
EFFECTIVE LENGTH (INCH/MM) 2.25/57.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C 0 to +50
MAXIMUM WIDTH (INCH/MM) 7.75/196.9
EFFECTIVE WIDTH (INCH/MM) 2.0/50.8
PATH LENGTH (INCH/MM) 1.13/28.7

SAMPLE CHAMBER SPECIFICATIONS

CHAMBER DEPTH (INCH/MM) 1.13/28.7
SLIDE WIDTH (INCH/MM) 3.5/88.9
PLANCHET DEPTH (INCH/MM) 0.155/3.9
PLANCHET DIAMETER (INCH/MM) 2.0/50.8

Operating Characteristics

CAPACITANCE (PF) 3
OPERATING VOLTAGE RANGE - BETA/GAMMA (VOLTS) 1350 - 1600
OPERATING VOLTAGE RANGE - ALPHA (VOLTS) 900 - 1150
RECOMMENDED OPERATING VOLTAGE - ALPHA (VOLTS) 1000
RECOMMENDED OPERATING VOLTAGE - BETA/GAMMA (VOLTS) 1450
