45614

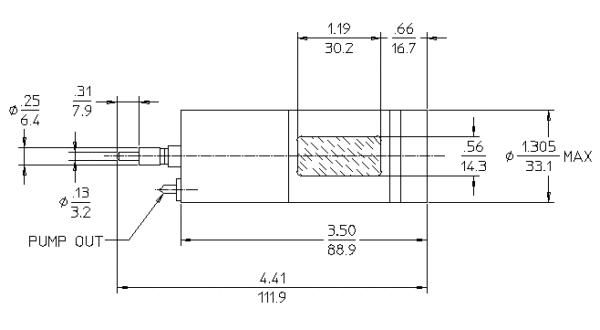

General Specifications

MAXIMUM LENGTH (INCH/MM) 4.41/111.9
MAXIMUM DIAMETER (INCH/MM) 1.305/33.1
GAS FILLING Xenon
EFFECTIVE LENGTH (INCH/MM) 3.0/76.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
EFFECTIVE DIAMETER (INCH/MM) 1.062/26.9
CONNECTOR Grid Cap
OPERATING TEMPERATURE RANGE °C -40 to +75
GAS PRESSURE (TORR) 1290
PATH LENGTH (INCH/MM) 1.062/26.9

Window Specifications

MATERIAL Beryllium
THICKNESS (INCH/MM) 0.005/0.127
AREAL DENSITY (MG/CM²) 23
DIMENSIONS (INCH/MM) 1.19 x 0.56/30.2 x 14.2

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 2400
OPERATING VOLTAGE RANGE (VOLTS) 2300 - 2650
CAPACITANCE (PF) 3
TYPICAL RESOLUTION (FWHM FE55) 18
