4542

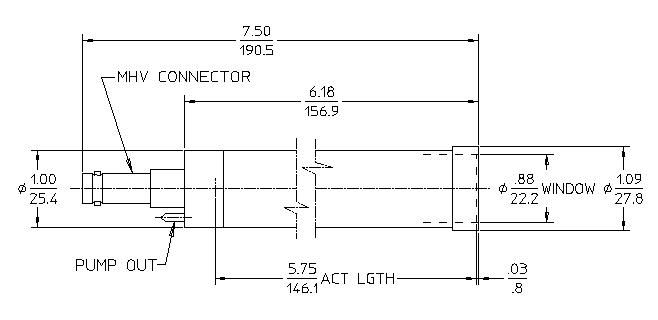

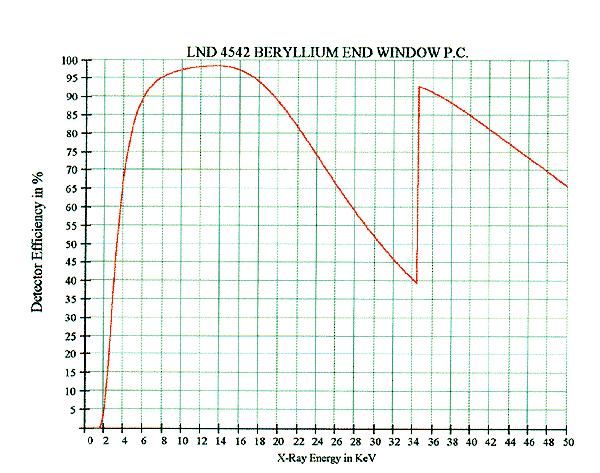

General Specifications

MAXIMUM LENGTH (INCH/MM) 7.5/190.5
MAXIMUM DIAMETER (INCH/MM) 1.09/27.69
GAS FILLING Xenon
EFFECTIVE LENGTH (INCH/MM) 5.75/146.05
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
EFFECTIVE DIAMETER (INCH/MM) 0.88/22.35
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -40 to +75
GAS PRESSURE (TORR) 760
PATH LENGTH (INCH/MM) 5.75/146.05

Window Specifications

MATERIAL Beryllium
THICKNESS (INCH/MM) 0.01/0.25
AREAL DENSITY (MG/CM²) 46
DIAMETER (INCH/MM) 0.88/22.4

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1700
OPERATING VOLTAGE RANGE (VOLTS) 1600 - 1850
CAPACITANCE (PF) 3
TYPICAL RESOLUTION (FWHM CD109) 10
