45144

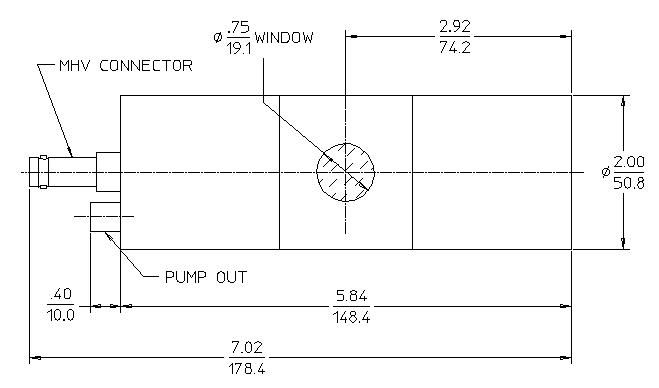

General Specifications

MAXIMUM LENGTH (INCH/MM) 7.02/178.4
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
GAS FILLING Neon / Argon
EFFECTIVE LENGTH (INCH/MM) 4.5/114.3
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
EFFECTIVE DIAMETER (INCH/MM) 1.88/47.8
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -40 to +75
GAS PRESSURE (TORR) 800

Window Specifications

MATERIAL Beryllium
THICKNESS (INCH/MM) 0.0005/0.013
AREAL DENSITY (MG/CM²) 2.3
DIAMETER (INCH/MM) 0.75/19.1

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 650
OPERATING VOLTAGE RANGE (VOLTS) 500 - 850
CAPACITANCE (PF) 3
TYPICAL RESOLUTION (FWHM FE55) 12 - 14
