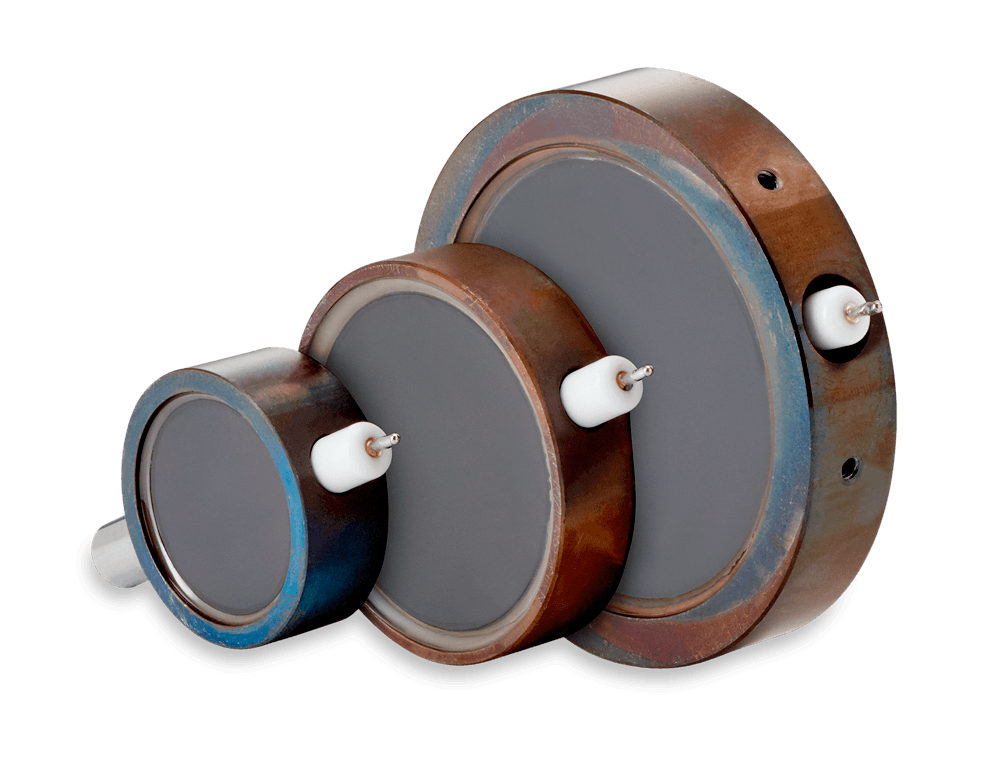

4335

General Specifications

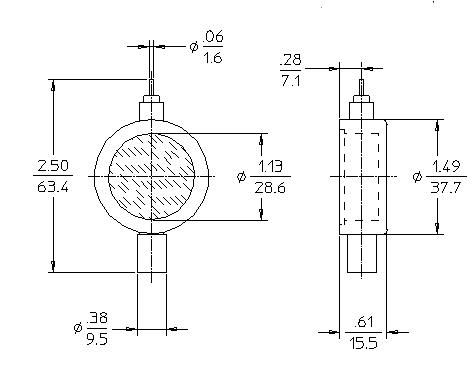

MAXIMUM LENGTH (INCH/MM) 2.5/63.4
MAXIMUM DIAMETER (INCH/MM) 1.49/37.7
GAS FILLING Argon
CATHODE MATERIAL (INTERNAL/EXTERNAL) Stainless Steel
EFFECTIVE DIAMETER (INCH/MM) 1.13/28.6
CONNECTOR Pin
OPERATING TEMPERATURE RANGE °C -30 to +75
GAS PRESSURE (TORR) 600
PATH LENGTH (INCH/MM) 0.49/12.45

Window Specifications

MATERIAL Mica
AREAL DENSITY (MG/CM²) 1.8-1.9
DIAMETER (INCH/MM) 1.13/28.6

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1250
OPERATING VOLTAGE RANGE (VOLTS) 1000 - 1650
CAPACITANCE (PF) 3
