42845

General Specifications

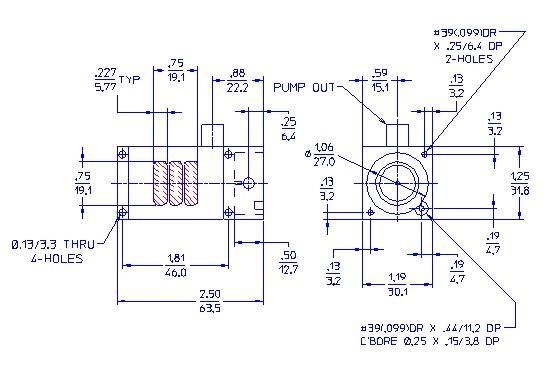

MAXIMUM LENGTH (INCH/MM) 2.5/63.5
GAS FILLING Xenon
EFFECTIVE LENGTH (INCH/MM) 1.5/38.1
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
CONNECTOR Pin
OPERATING TEMPERATURE RANGE °C -40 to +75
MAXIMUM WIDTH (INCH/MM) 1.25/31.75
GAS PRESSURE (TORR) 1140
EFFECTIVE WIDTH (INCH/MM) 1.0/25.4
PATH LENGTH (INCH/MM) 1.0/25.4

Window Specifications

MATERIAL Beryllium
THICKNESS (INCH/MM) 0.002/0.05
AREAL DENSITY (MG/CM²) 9.2
DIMENSIONS (INCH/MM) 1.0 x 1.0/25.4 x 25.4

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1950
OPERATING VOLTAGE RANGE (VOLTS) 1850 - 2100
CAPACITANCE (PF) 3
TYPICAL RESOLUTION (FWHM FE55) 20
