426

General Specifications

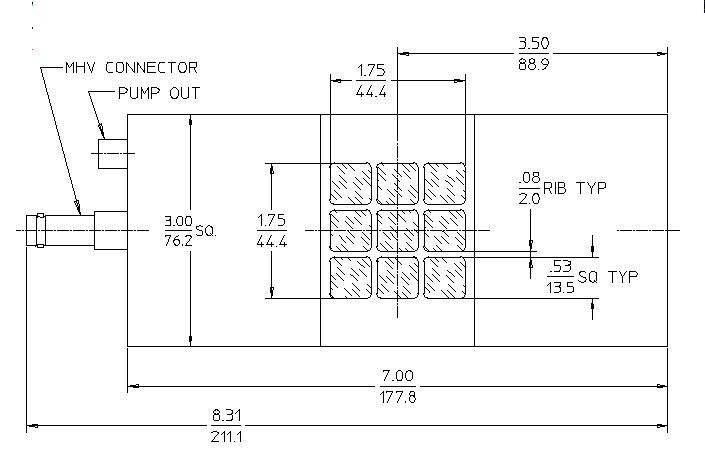

MAXIMUM LENGTH (INCH/MM) 8.31/211.07
GAS FILLING Argon
EFFECTIVE LENGTH (INCH/MM) 5.45/138.43
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -40 to +75
MAXIMUM WIDTH (INCH/MM) 3.0/76.2
GAS PRESSURE (TORR) 800
EFFECTIVE WIDTH (INCH/MM) 2.75/69.85
PATH LENGTH (INCH/MM) 2.75/69.85

Window Specifications

MATERIAL Beryllium
THICKNESS (INCH/MM) 0.002/0.05
AREAL DENSITY (MG/CM²) 9.2
DIMENSIONS (INCH/MM) 1.75 x 1.75/44.45 x 44.45

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1850
OPERATING VOLTAGE RANGE (VOLTS) 1750 - 2000
CAPACITANCE (PF) 3
TYPICAL RESOLUTION (FWHM FE55) 18
