42514

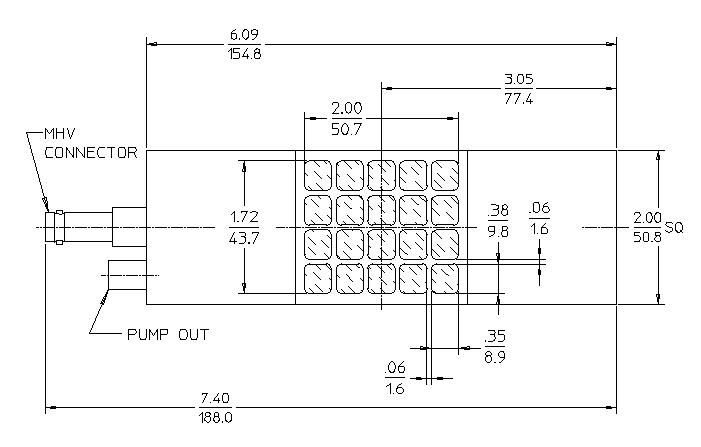

General Specifications

MAXIMUM LENGTH (INCH/MM) 7.4/187.96
GAS FILLING Neon
EFFECTIVE LENGTH (INCH/MM) 4.63/117.6
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -40 to +75
MAXIMUM WIDTH (INCH/MM) 2.0/50.8
GAS PRESSURE (TORR) 800
EFFECTIVE WIDTH (INCH/MM) 1.75/44.45
PATH LENGTH (INCH/MM) 1.75/44.45

Window Specifications

MATERIAL Beryllium
THICKNESS (INCH/MM) 0.002/0.05
AREAL DENSITY (MG/CM²) 9.2
DIMENSIONS (INCH/MM) 2.0 x 1.7/50.8 x 43.9

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1100
OPERATING VOLTAGE RANGE (VOLTS) 1000 - 1250
CAPACITANCE (PF) 3
TYPICAL RESOLUTION (FWHM FE55) 18
