425

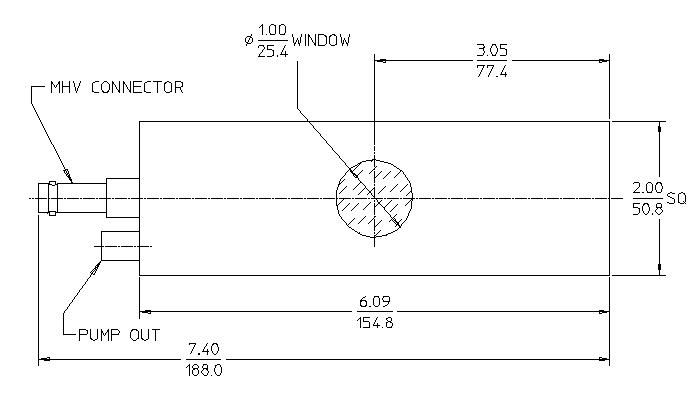

Quadrilateral side window proportional counter

General Specifications

MAXIMUM LENGTH (INCH/MM) 7.4/187.96
GAS FILLING Argon
EFFECTIVE LENGTH (INCH/MM) 4.75/120.65
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -40 to +75
MAXIMUM WIDTH (INCH/MM) 2.0/50.8
GAS PRESSURE (TORR) at 21°C 800
EFFECTIVE WIDTH (INCH/MM) 1.75/44.45
PATH LENGTH (INCH/MM) 1.75/44.45

Window Specifications

MATERIAL Beryllium
THICKNESS (INCH/MM) 0.002/0.05
AREAL DENSITY (MG/CM²) 9.2
DIAMETER (INCH/MM) 1.0/25.4

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1800
OPERATING VOLTAGE RANGE (VOLTS) 1700 - 1950
CAPACITANCE (PF) 3
TYPICAL RESOLUTION (FWHM FE55) 20
