4032

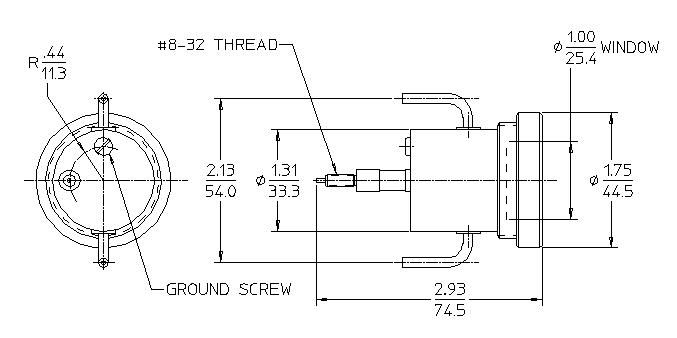

General Specifications

MAXIMUM LENGTH (INCH/MM) 2.93/74.5
MAXIMUM DIAMETER (INCH/MM) 2.25/57.15
GAS FILLING P10
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
EFFECTIVE DIAMETER (INCH/MM) 1.0/25.4
CONNECTOR Pin
OPERATING TEMPERATURE RANGE °C 0 to +50

Window Specifications

MATERIAL Mylar
THICKNESS (INCH/MM) 0.0005/0.013
AREAL DENSITY (MG/CM²) 0.8
DIAMETER (INCH/MM) 1.0/25.4

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1800
OPERATING VOLTAGE RANGE (VOLTS) 1700 - 1950
CAPACITANCE (PF) 3
TYPICAL RESOLUTION (FWHM FE55) 25
