49532

General Specifications

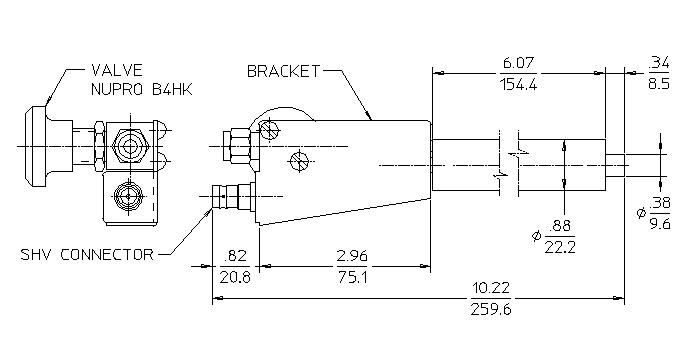

MAXIMUM LENGTH (INCH/MM) 10.22/259.6
MAXIMUM DIAMETER (INCH/MM) 0.88/22.4
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
CONNECTOR SHV
OPERATING TEMPERATURE RANGE °C -50 to +150
TEST GAS FILLING Argon
ACTIVE VOLUME (ML) 45
ACTIVE LENGTH (INCH/MM) 5.33/135.4

Electrical Specifications

OPERATING VOLTAGE RANGE (VOLTS) 1150 - 1450
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
MINIMUM PLATEAU LENGTH (VOLTS) 300
BACKGROUND (CPM) 0.7
