4953

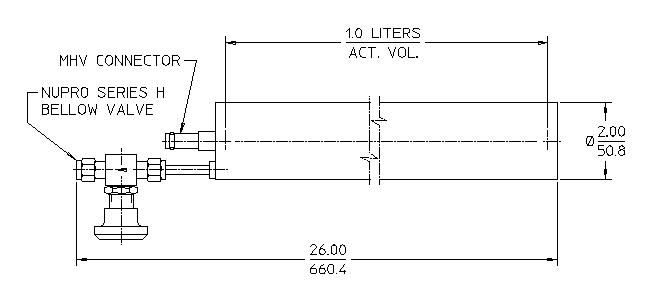

General Specifications

MAXIMUM LENGTH (INCH/MM) 26.00/660.4
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +150
TEST GAS FILLING Ar + CH4
ACTIVE VOLUME (ML) 1000

Electrical Specifications

MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
MINIMUM PLATEAU LENGTH (VOLTS) 300
