49529

General Specifications

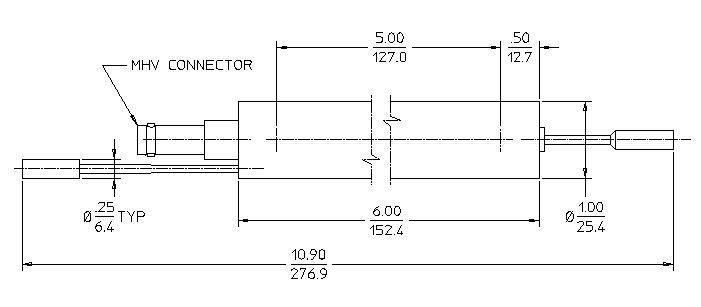

MAXIMUM LENGTH (INCH/MM) 10.9/276.9
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +150
ACTIVE VOLUME (ML) 50

Electrical Specifications

MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
MINIMUM PLATEAU LENGTH (VOLTS) 300
