49526

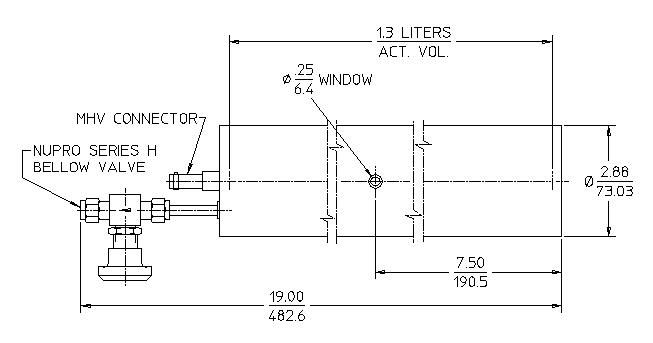

General Specifications

MAXIMUM LENGTH (INCH/MM) 19.0/482.6
MAXIMUM DIAMETER (INCH/MM) 2.875/73.1
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
TEST GAS FILLING Ar + CH4
ACTIVE VOLUME (ML) 1300

Window Specifications

MATERIAL Be
AREAL DENSITY (MG/CM²) 9.3
DIAMETER (INCH/MM) 0.25/6.35

Electrical Specifications

MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
MINIMUM PLATEAU LENGTH (VOLTS) 300
