49525

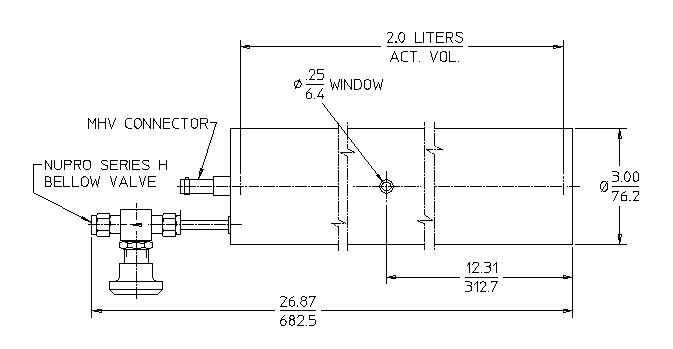

General Specifications

MAXIMUM LENGTH (INCH/MM) 26.88/682.6
MAXIMUM DIAMETER (INCH/MM) 3.0/76.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
CONNECTOR HN
OPERATING TEMPERATURE RANGE °C -50 to +100
TEST GAS FILLING Ar + CH4
ACTIVE VOLUME (ML) 2000

Window Specifications

MATERIAL Be
AREAL DENSITY (MG/CM²) 9.3
DIAMETER (INCH/MM) 0.25/6.35

Electrical Specifications

MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
MINIMUM PLATEAU LENGTH (VOLTS) 300
