49524

General Specifications

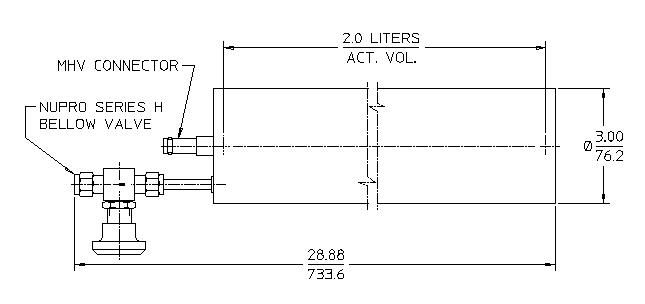

MAXIMUM LENGTH (INCH/MM) 28.88/733.5
MAXIMUM DIAMETER (INCH/MM) 3.0/76.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +150
TEST GAS FILLING Ar + CH4
ACTIVE VOLUME (ML) 2000

Electrical Specifications

MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
MINIMUM PLATEAU LENGTH (VOLTS) 300
