49522

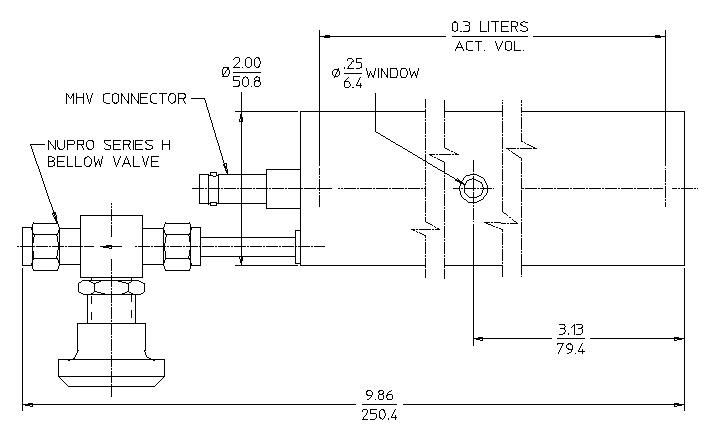

General Specifications

MAXIMUM LENGTH (INCH/MM) 9.86/250.4
MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
CONNECTOR MHV
OPERATING TEMPERATURE RANGE °C -50 to +100
TEST GAS FILLING Ar + CH4
ACTIVE VOLUME (ML) 300

Window Specifications

MATERIAL Be
AREAL DENSITY (MG/CM²) 9.3
DIAMETER (INCH/MM) 0.25/6.35

Electrical Specifications

MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
MINIMUM PLATEAU LENGTH (VOLTS) 300
