492

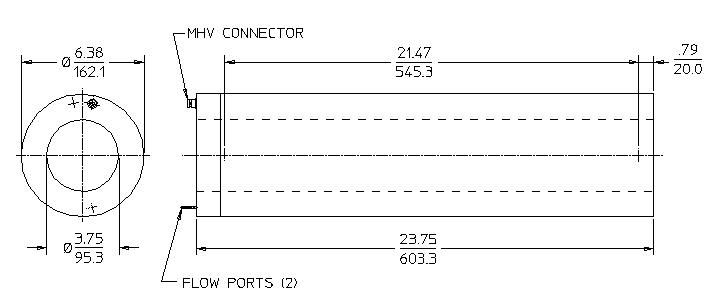

General Specifications

MAXIMUM LENGTH (INCH/MM) 24.75/628.65
MAXIMUM DIAMETER (INCH/MM) 6.38/162.1
CATHODE MATERIAL (INTERNAL/EXTERNAL) OFHC Copper
CONNECTOR MHV
SENSITIVE LENGTH (INCH/MM) 21.47/544.5

Electrical Specifications

RECOMMENDED OPERATING VOLTAGE (VOLTS) 1000
OPERATING VOLTAGE RANGE (VOLTS) 800-1250
MAXIMUM PLATEAU SLOPE (%/100 VOLTS) 2
MINIMUM PLATEAU LENGTH (VOLTS) 300
TEST FLOW GAS P10

Wall Specifications

DIAMETER (INCH/MM) 3.75/95.2
MAXIMUM LENGTH WALL (INCH/MM) 23.75/603.3
EFFECTIVE LENGTH (INCH/MM) 21.47/544.5
