30785

General Specifications

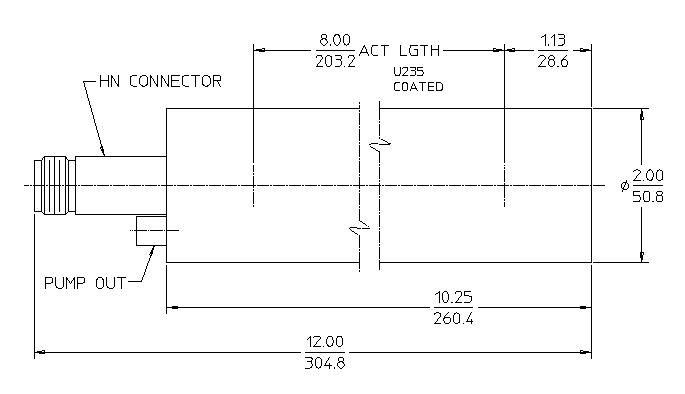

MAXIMUM DIAMETER (INCH/MM) 2.0/50.8
EFFECTIVE DIAMETER (INCH/MM) 1.87/47.5
MAXIMUM LENGTH (INCH/MM) 12.0/304.8
SENSITIVE LENGTH (INCH/MM) 8.0/203.2
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
FILL GAS Argon
FILL PRESSURE (TORR) 760
CONNECTOR HN

Neutron Sensitive Material

MATERIAL U235
ENRICHMENT (%) >93
TOTAL QUANTITY (MG) 2.43

OPERATING CHARACTERISTICS

NEUTRON SENSITIVITY (COUNTS/1E5 NEUTRONS) 1
RECOMMENDED OPERATING VOLTAGE (VOLTS) 500
OPERATING VOLTAGE RANGE (VOLTS) 200 - 800
BACKGROUND (COUNTS) 1
PULSE RISE TIME (NANOSECONDS) 200
