307711

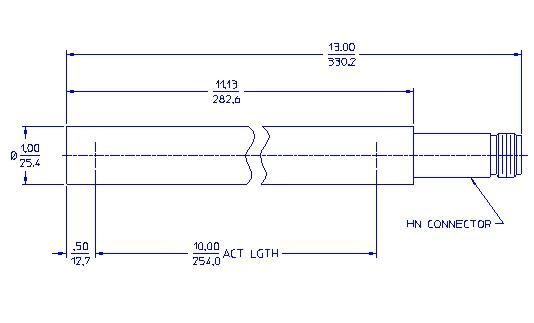

General Specifications

MAXIMUM LENGTH (INCH/MM) 13.0/330.2
MAXIMUM DIAMETER (INCH/MM) 1.0/25.4
CATHODE MATERIAL (INTERNAL/EXTERNAL) Aluminum
EFFECTIVE DIAMETER (INCH/MM) 0.93/23.6
CONNECTOR HN
SENSITIVE LENGTH (INCH/MM) 10.0/254.0
FILL GAS Argon, Nitrogen
FILL PRESSURE (TORR) 760

Neutron Sensitive Material

ENRICHMENT (%) >93
MATERIAL U235
TOTAL QUANTITY (MG) 150

Operating Characteristics

RECOMMENDED OPERATING VOLTAGE (VOLTS) 500
OPERATING VOLTAGE RANGE (VOLTS) 200 - 800
NEUTRON SENSITIVITY (COUNTS/10³ NEUTRONS) 1
BACKGROUND (COUNTS) 1.0
PULSE RISE TIME (NANOSECONDS) 200
